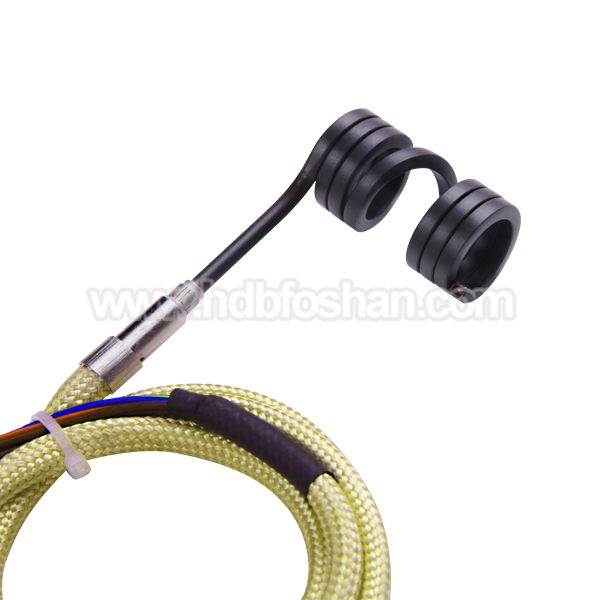

Spring Heater
H4:3.5 x 3.5 mm specification parameters:
Total length ／ mm | Length of the heating coil ／ mm | Length of the unheated coil ／ mm | Power（230V） |
315 | 270 | 45 | 200W |
385 | 340 | 45 | 250W |
455 | 410 | 45 | 300W |
535 | 490 | 45 | 350W |
595 | 550 | 45 | 400W |
675 | 630 | 45 | 450W |
735 | 690 | 45 | 500W |
805 | 760 | 45 | 550W |
875 | 830 | 45 | 600W |
995 | 950 | 45 | 700W |
1145 | 1100 | 45 | 800W |
1285 | 1240 | 45 | 900W |
1425 | 1380 | 45 | 1000W |
1845 | 1800 | 45 | 1100W |
1995 | 1950 | 45 | 1200W |
